Power Supply

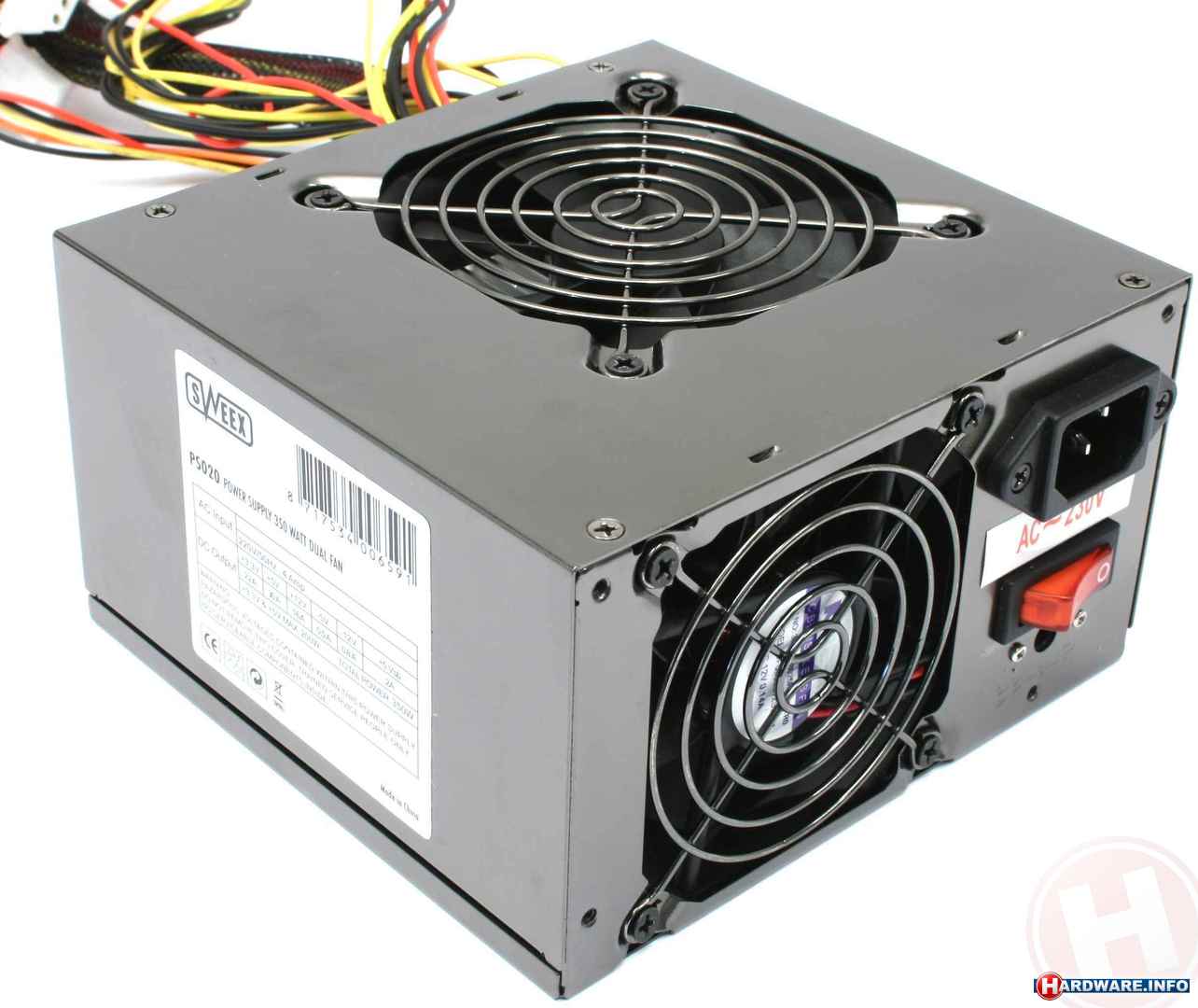

Now we're going to connect a few cables to the motherboard fom the power supply. Do not work with wet hands or attempt to open the power supply. The power supply unit powers up your entire computer.



Step 1. Place the power supply at the bottom of the case, which is usually where the screws are and screw it in place.

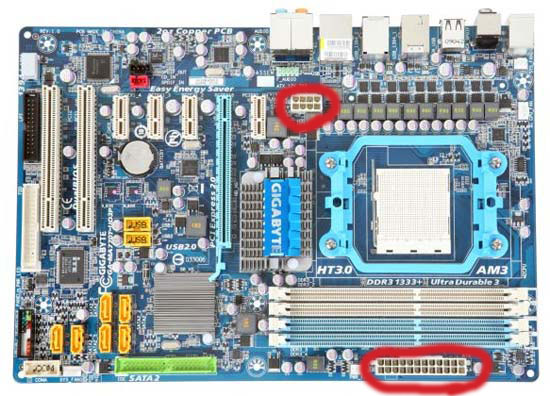

Step 2. Connect the 24 pin into the motherboard.

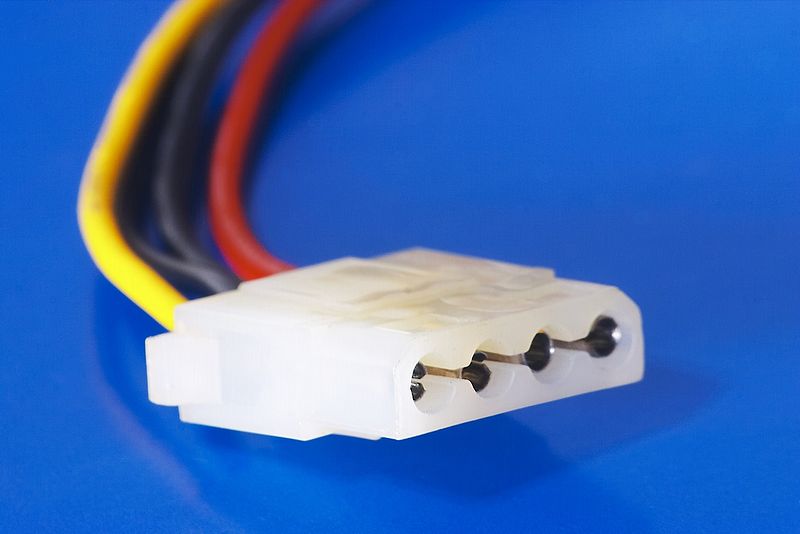

Step 3. Connect te 4 point molex into the hard drive and fans.


(Optional) Step 4. Connect the PCI-E 6point connector to the graphics card


Step 5. Connect the 4 point CPU into the motherboard by the CPU



Done
